Mellow 1Set 3D Printers Parts VzBoT GT2 Idler Kit Aluminium Timing Pulley 20 Tooth Wheel Bore 5mm For 2GT Gates Timing Belt 6MM
Mellow 1Set 3D Printers Parts VzBoT GT2 Idler Kit Aluminium Timing Pulley 20 Tooth Wheel Bore 5mm For 2GT Gates Timing Belt 6MM
Precio habitual
$29.99 USD
Precio habitual
Precio de oferta
$29.99 USD
Precio unitario
por
Impuesto incluido.
No se pudo cargar la disponibilidad de retiro
Teeth are produced by special tools supplied by gates and work perfectly with the gates belt. After we studied the teeth of the ordinary Teeth pulley, it was not produced by professional tools, and there were relatively large tolerances, which caused the belt to jump with the Teeth pulley, which may affect the printing effect. For highly demanding customers, they are reluctant to accept subtle errors, so we specialize in customizing the Teeth pulley to meet the needs of our customers.
Toothed Idlers used appropriately in place of bearings prevent damage to the belts teeth by allowing it to glide freely and gently cups its teeth as it traverses around the curve.
Smoothed Idlers are purposely designed, with correct flanges and clearance to ensure a belt retains a constant tension throughout its entire stroke in a way bearings could never match.
Toothed Idlers used appropriately in place of bearings prevent damage to the belts teeth by allowing it to glide freely and gently cups its teeth as it traverses around the curve.
Smoothed Idlers are purposely designed, with correct flanges and clearance to ensure a belt retains a constant tension throughout its entire stroke in a way bearings could never match.
The idler uses a high-precision machine to produce a surface finish of Ra0.4um for smoother use.
Need to understand 3D Printer VzBoT follow this URL https://www.youtube.com/shorts/1AkJ15lVum4,https://docs.google.com/spreadsheets/d/1eNbgQ2HAe7iDxFRou1gHZOtjP1PLiPEpZYigivr-bK0/edit?usp=sharing
Specifications:
Tooth: 20T
Model: With tooth/ Without tooth
Material: Aluminum
Bore: 5mm
Width of gear:6.5mm
Use For 6mm Belt

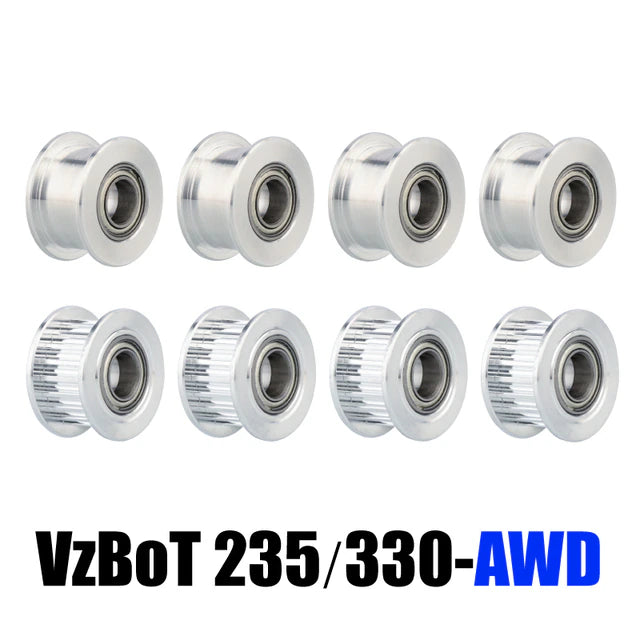

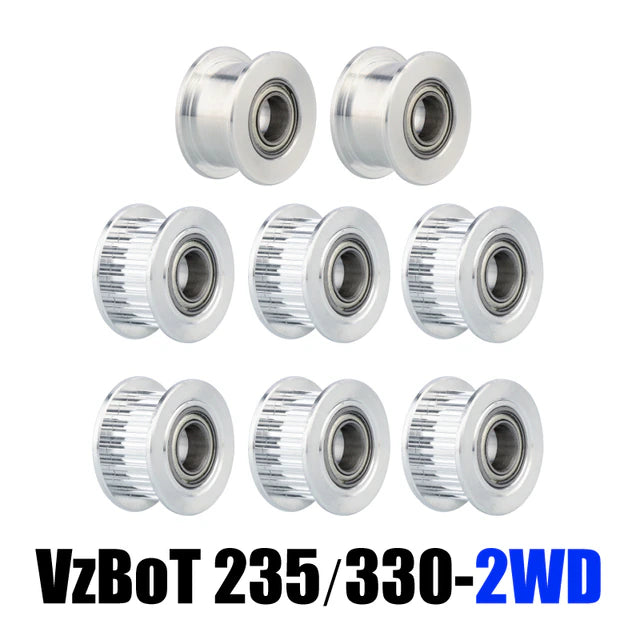

Package included:
SET1
6*With tooth Idlers
2*Without tooth Idlers
SET2
4*With tooth Idlers
4*Without tooth Idlers
