T8 oldham coupling v2
T8 oldham coupling v2
Precio habitual
$19.99 USD
Precio habitual
Precio de oferta
$19.99 USD
Precio unitario
por
Impuesto incluido.
No se pudo cargar la disponibilidad de retiro
The design is provided by the VzBoT team.
This T8 Oldham coupling is made of brass, which reduces friction and has sufficient strength. CNC machining controls the clearance at the connection location. The use of this shaft coupling for the Z-axis screw of the 3D printer will reduce the printing quality problems caused by the swing of the hot bed during the printing process.
This T8 Oldham coupling is made of brass, which reduces friction and has sufficient strength. CNC machining controls the clearance at the connection location. The use of this shaft coupling for the Z-axis screw of the 3D printer will reduce the printing quality problems caused by the swing of the hot bed during the printing process.
High-precision CNC machining screw thread, tighter fit and more stable. It is recommended to buy high-quality screw rods, which will achieve the best results.
Note: The kinematic feature of this part increases the error tolerance space, so a small amount of clearance can be used normally.
-

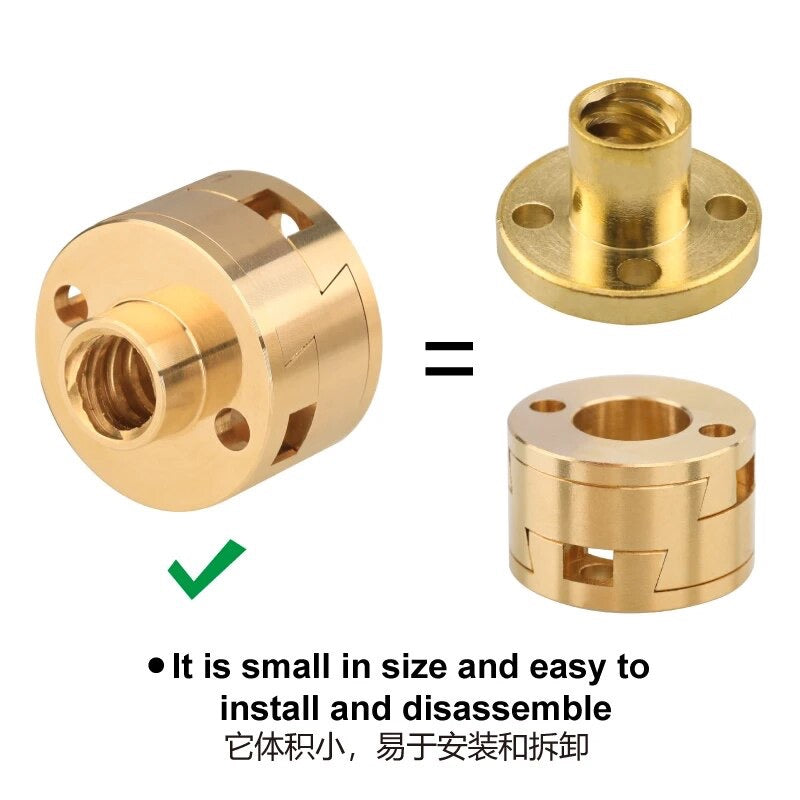

It is small in size and easy to install and disassemble
-

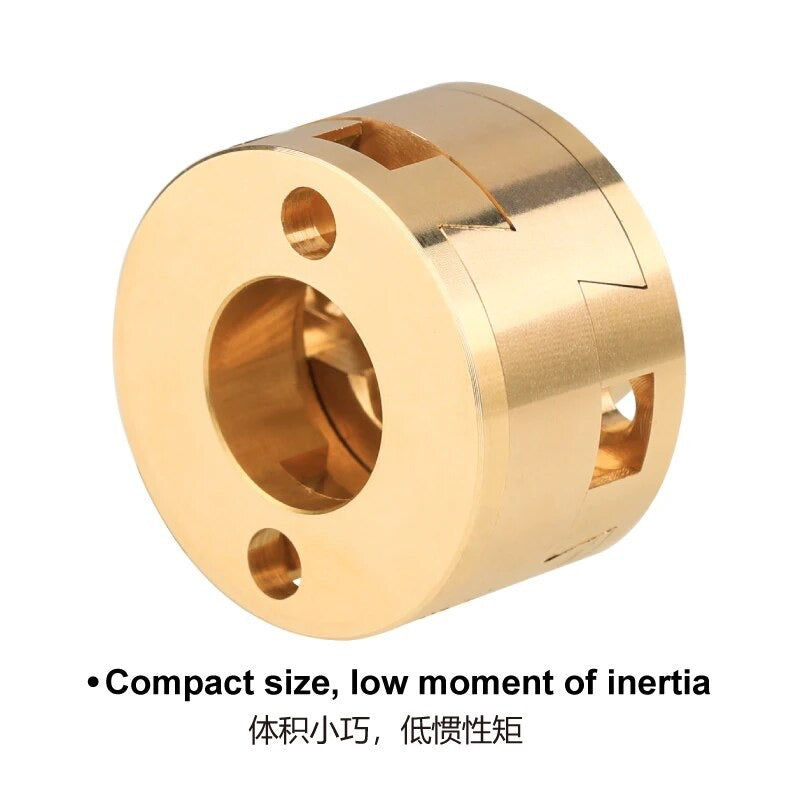

Compact size, low moment of inertia
-

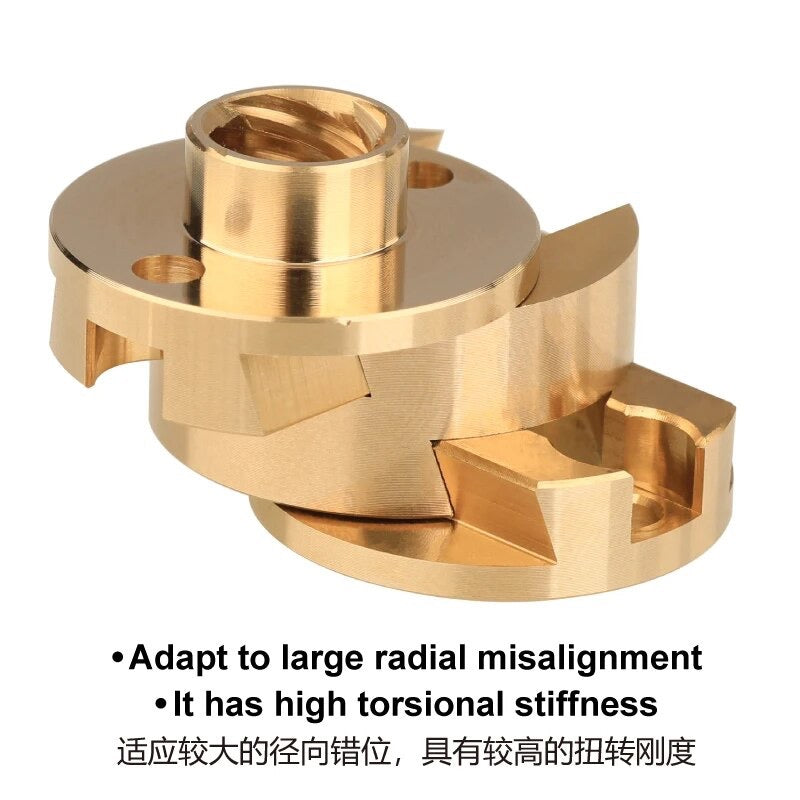

Adapt to large radial misalignment
-
It protects driven parts and support bearings
-
It has high torsional stiffness
-
Good surface finish and longer service life

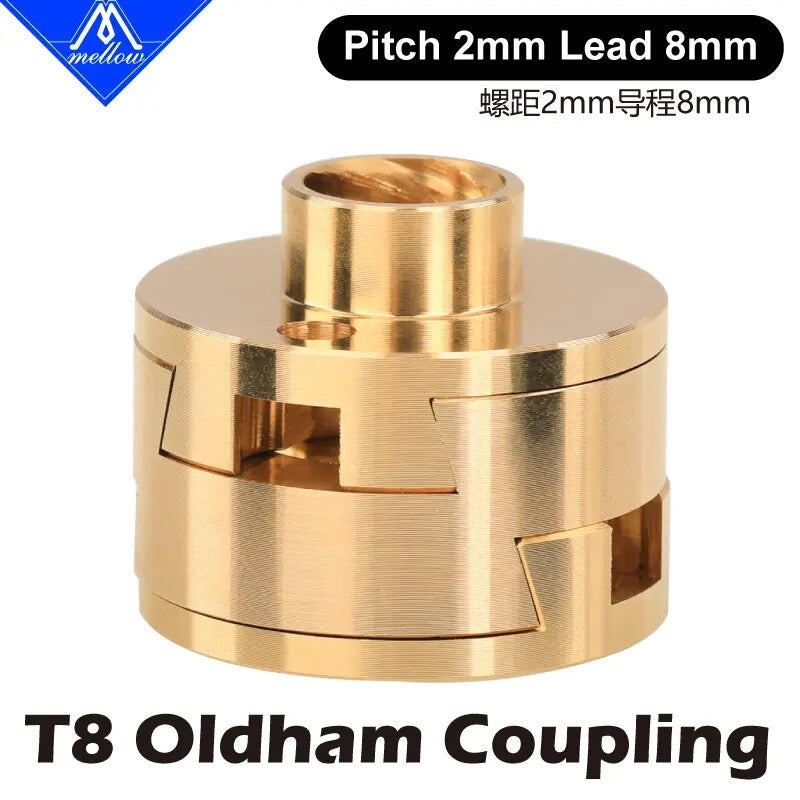

Applicable range: T8 screw rod, thread pitch 2mm, lead 8mm
The T8 screw rod position is increased to save space
Comes with 2 per item
1Compatible
-
VzBot 3D Printer
-
Blv 3D Printer
-
3D Printer Using T8 Screw For Z Axis
